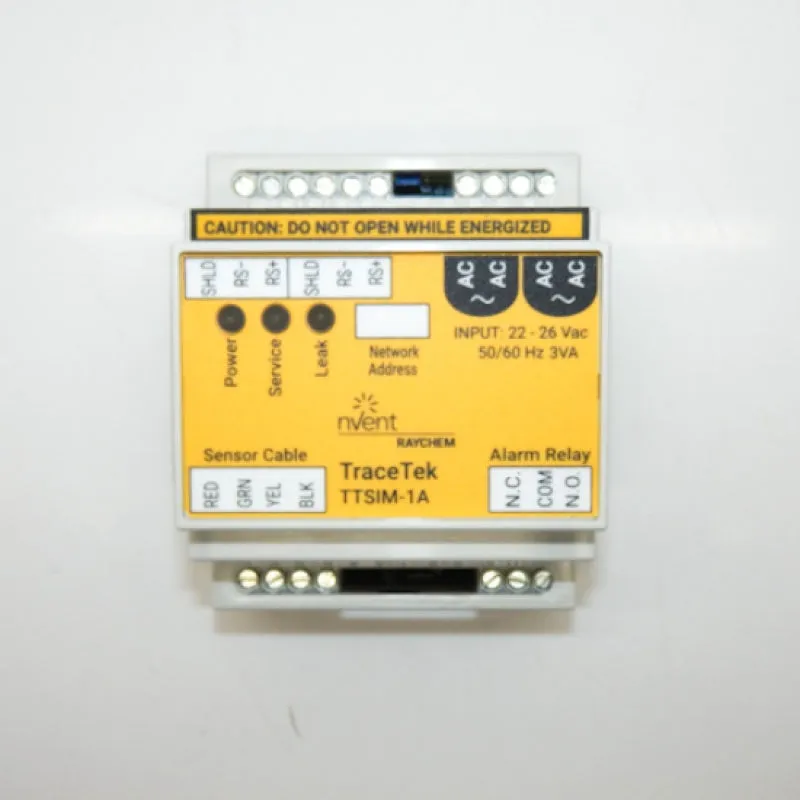

nVent RAYCHEM TraceTek TTSIM-1A is a sensor interface module with capacity to monitor up to 150 m (500ft) of sensor cable. Leak alarm signaling is via LED, dry contact relay, and serial data to a PLC or host system using standard protocols. It can be used as a stand-alone leak detection alarm unit, or in networks with TTSIM, TT-NRM, TTDM-128, or TT-TS12 modules.

Specifications:

• Depth: 2.28 in

• Width: 2.76 in
• Height: 3.39 in
• Operating Temperature: 32 – 122 °F
• Relay Contacts: SPDT, Form C
